The coating of agricultural machinery (such as tractors, harvesters, and seeders) must meet the corrosion resistance and wear resistance requirements under extreme working conditions, and must comply with international standards such as ISO 12944 and ISO 14001. This article proposes a set of design schemes based on international specifications, covering the entire process of pre-treatment, spraying, environmental protection and quality control.
1. Process route: follow international standards, taking into account performance and environmental protection
1.1 Pre-treatment process
Surface cleanliness: The workpiece is sandblasted to Sa 2.5 level (ISO 8501-1), and secondary rust needs to be re-sandblasted to the original standard.
Phosphorus-free conversion film: Nano-silane treatment technology is used to replace the traditional phosphating process, and the neutral salt spray test is ≥1200 hours, which meets the ISO 9227 standard.
Pure water system: Three-stage countercurrent pure water washing, the surface conductivity of the workpiece is <15μS/cm, and impurities are not left to cause coating defects.
1.2 Powder spraying process
Powder performance: Fluorocarbon modified epoxy resin powder is selected, QUV test ≥2500 hours, salt spray resistance ≥1000 hours, which meets the ISO 6270 standard.
Ultra-thick coating: Electrostatic rotary cup technology achieves a single spraying film thickness of ≥180μm, uniformity of ±5μm, and a compliance rate of ≥95%, meeting the requirements of ultra-thick coatings for agricultural machinery.
Fast color change: Fully automatic color change device (color change time <30 seconds), supports metal powder and special effect powder, and meets the ISO 12944-9 standard.
2. Equipment selection: Automation and intelligent control 2.1 Intelligent conveying system

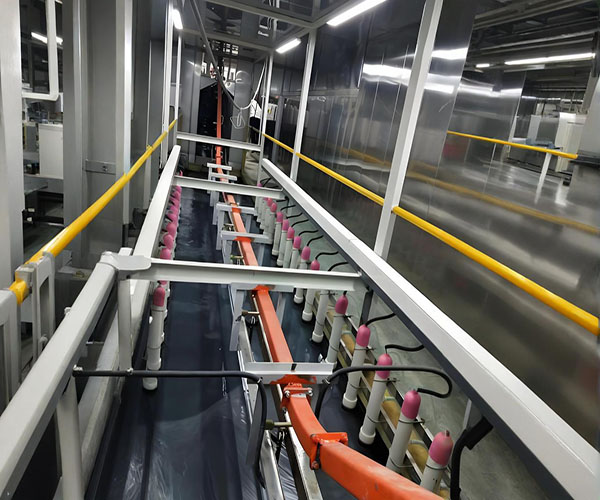

The heavy-duty chain conveyor line supports workpieces with a maximum size of ＞8m (such as the chassis of a combine harvester), equipped with RFID workpiece identification technology, and the line change time is ≤20 minutes, which meets the ISO 10847 noise control standard.
2.2 Waste gas treatment module
Zeolite rotor + RTO combination: VOCs removal efficiency ≥99%, emission concentration ≤50mg/m³, meeting GB 16297-1996 and EU EN 1276 standards.
Heat recovery: RTO waste heat is recycled in the drying process, annual electricity saving ≥1 million kW·h, and comprehensive energy consumption is reduced by 35%, which meets the ISO 50001 energy management standard.
2.3 Powder recovery system
Large cyclone recovery device, powder utilization rate ≥99%, centralized waste powder treatment, in line with ISO 14021 environmental label standards.
3. Data-driven: full-cycle management
3.1 Digital twin technology
Simulate production line operation through the industrial Internet platform, optimize equipment layout and capacity matching, shorten the design verification cycle by 60%, and comply with ISO 10303 product data exchange standards.
3.2 Remote operation and maintenance system
Real-time monitoring of parameters such as spray gun pressure and powder flow, fault warning response time <5 minutes, equipment downtime rate ≤80%, in line with ISO 13374 health monitoring standards.
4. Quality control and testing
4.1 Coating performance test
Film thickness detection: five-point average method, indoor powder 50-100μm, outdoor powder 60-120μm.
Adhesion test: 100-grid test shedding area <5%, bending test 180 degrees without shedding, in line with ISO 2409 standards.
4.2 Environmental performance test
Waste gas emission: VOCs concentration detection adopts GB/T 16157-1996 method, discharge port height ≥15m, in line with EU TA Luft standard.
5. Industry Application Cases
A large agricultural machinery manufacturer: After adopting this solution, the salt spray resistance of the coating meets the standard, the maintenance cost is reduced by 40%, and the annual production capacity of a single line is increased to 12,000 units, which complies with the ISO 9001 quality management system.
Combine harvester chassis project: The ultra-thick coating process achieves a single spraying ≥180μm, the compliance rate is increased from 60% to 95%, and the production efficiency is increased by 60%, which meets the ISO 12944-2 durability standard.
Conclusion
This design scheme provides full-process specifications for agricultural machinery powder spraying lines by integrating ISO international standards, corrosion-resistant processes and intelligent equipment. Enterprises following this solution can build an efficient, green and flexible coating system to meet global market access requirements and enhance international competitiveness.
