Construction machinery (such as excavators, loaders, crawler chassis) has extremely strict requirements on coating process: the coating must have super corrosion resistance, wear resistance and impact resistance to adapt to extreme working conditions such as mines and swamps, and at the same time, it must meet the requirements of large-scale production efficiency and environmental compliance. This article combines the pain points of the industry and proposes a set of powder coating line design schemes that take into account durability, efficiency and sustainability.
1. Process route: with "corrosion resistance + environmental protection" as the core
Pre-treatment innovation
Sandblasting rust removal + phosphorus-free conversion: phosphorus-free degreasing agent combined with nano-silane treatment technology is used to replace the traditional phosphating process, reduce heavy metal pollution, and improve coating adhesion (neutral salt spray test ≥ 1000 hours).
Pure water closed-loop system: three-stage countercurrent pure water washing design ensures that the surface conductivity of the workpiece is less than 20μS/cm, avoiding impurities and coating defects.
Powder spraying optimization
High wear-resistant epoxy powder: phenolic modified epoxy resin system is selected, and the cross-linking density of the coating is improved through high-functionality resin to form a dense protective layer with excellent resistance to stone chipping.
Ultra-thick coating process: using electrostatic rotary cup technology, the powder utilization rate is more than 95%, the film thickness uniformity is ±5μm, and a single spraying can achieve ≥150μm ultra-thick coating, and the service life is extended by 40%.
2. Equipment selection: automation and intelligent control
Intelligent conveying system

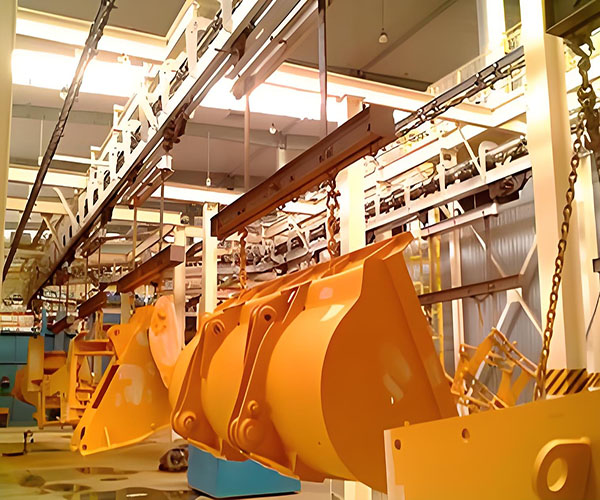

Heavy-duty chain conveyor line supports large-size workpieces (such as crawler chassis with a length of >6m), and is equipped with workpiece recognition technology to realize automatic call of process parameters, and the line change time is shortened to less than 15 minutes.
Exhaust gas treatment module
Zeolite rotor + RTO combination: After the large air volume and low concentration exhaust gas is concentrated by the zeolite rotor, it is sent to the regenerative thermal incineration (RTO) system for treatment. The VOCs removal efficiency is ≥99%, meeting the GB 16297-1996 emission standard.
Heat recovery design: RTO waste heat is reused in the drying process, saving about 800,000 kW·h of electricity per year and reducing the comprehensive energy consumption by more than 30%.
Quick color change system
For multi-color requirements (such as customized painting of engineering vehicles), a fully automatic color change device (color change time <25 seconds) is configured to support the application of metal powder and special effect powder to reduce downtime losses.
3. Data-driven: full-cycle management from design to operation and maintenance
Digital twin technology: simulate the operation of the coating line through the industrial Internet platform, optimize the equipment layout and production capacity matching, and shorten the design verification cycle by 50%.
Remote operation and maintenance system: real-time monitoring of key parameters such as spray gun status and powder flow, fault warning response time <5 minutes, and equipment downtime rate reduced by 70%.
IV. Industry application cases
Technical transformation project of a large construction machinery manufacturer: After adopting the powder electrostatic spraying process, the coating salt spray resistance meets the standard, the maintenance cost is reduced by 35%, and the annual production capacity of a single line is increased to 8,000 units.
Ultra-thick coating application of crawler chassis: Through a single spraying, the film thickness of ≥150μm is achieved, the compliance rate is increased from 65% to 98%, and the production efficiency is increased by 50%.
Conclusion
The design of the powder coating line for construction machinery needs to balance corrosion resistance, production efficiency and environmental compliance. Through innovative processes, intelligent equipment and data-based management, enterprises can build an efficient, green and flexible coating system to gain an advantage in fierce competition.
