1. Industry characteristics and design challenges
The requirements for spray lines in cookware manufacturing have significant industry characteristics: food-grade coatings must meet the GB 4806.9 standard, high-temperature curing processes (180-220°C) result in energy consumption accounting for more than 65%, and complex workpiece structures (such as deep-cavity pots) need to solve edge coverage problems. A case study of a home appliance company shows that the pass rate of traditional spray lines is only 82%, and the main problems are uneven coating thickness (±8μm deviation) and color difference (ΔE≥2).
2. Core design points
①. Equipment selection and layout optimization
Spray gun system: The use of a rotating atomizing disk spray gun (speed 8000-12000rpm) combined with edge enhancement technology increases the coverage rate of deep-cavity parts to 95%. The practice of a hardware product company shows that this solution reduces the standard deviation of the coating thickness on the inside of the pot from 4.2μm to 1.8μm.

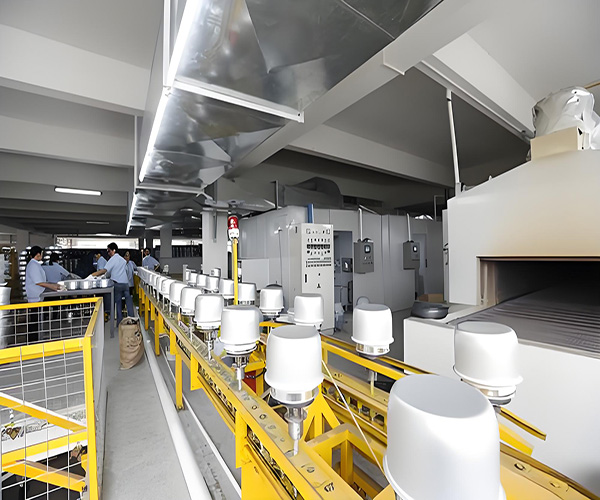

Conveying system: Accumulated and released suspension chain (pitch 150mm) with workpiece self-rotation mechanism (3-6rpm) to ensure uniformity of multi-faceted spraying. After adopting this design, the production cycle of Guangdong Chuangzhi project increased to 2.5 pieces/minute.
②. Energy-saving process integration
Waste heat recovery system: The exhaust gas of the curing furnace is preheated with fresh air through a plate heat exchanger. In one case, natural gas consumption was reduced by 23%.
Frequency conversion control strategy: The fan power is adjusted according to the real-time load, and the wind speed fluctuation in the spray room is controlled within ±0.1m/s, saving 186,000 kWh of electricity per year.
③. Intelligent transformation plan
AI visual inspection: Deploy 3D line laser sensors to monitor the coating thickness in real time (accuracy ±1μm), and the defect detection rate is increased from 78% of manual inspection to 99.3%.
Automatic color change system: Using a central powder supply center (6-color independent pipelines), the color change time is shortened to 45 seconds, and the powder waste rate is less than 0.5%.
3. Typical case analysis
Renovation project of a cookware enterprise in China:
Pretreatment optimization: ultrasonic degreasing + phosphating process is adopted, and the surface cleanliness of the workpiece reaches ISO 4 level.
Curing furnace upgrade: three-stage temperature control (preheating zone 150℃/main curing zone 200℃/cooling zone 80℃), thermal efficiency is increased to 92%.
Data results: unit energy consumption is reduced from 0.35kgce/㎡ to 0.22kgce/㎡, and VOCs emission concentration is <30mg/m³.
4. Future technology trends
Low-temperature curing technology: UV-LED curing equipment (wavelength 365nm) shortens the curing time to 5 seconds and reduces energy consumption by 40%.
Digital twin application: virtual commissioning is used to reduce on-site transformation costs, and a pilot project has compressed the commissioning cycle by 50%.
Powder circulation system: Nanofilm recovery technology achieves 99.2% powder utilization rate, and the purity of waste powder reaches food grade standards.
